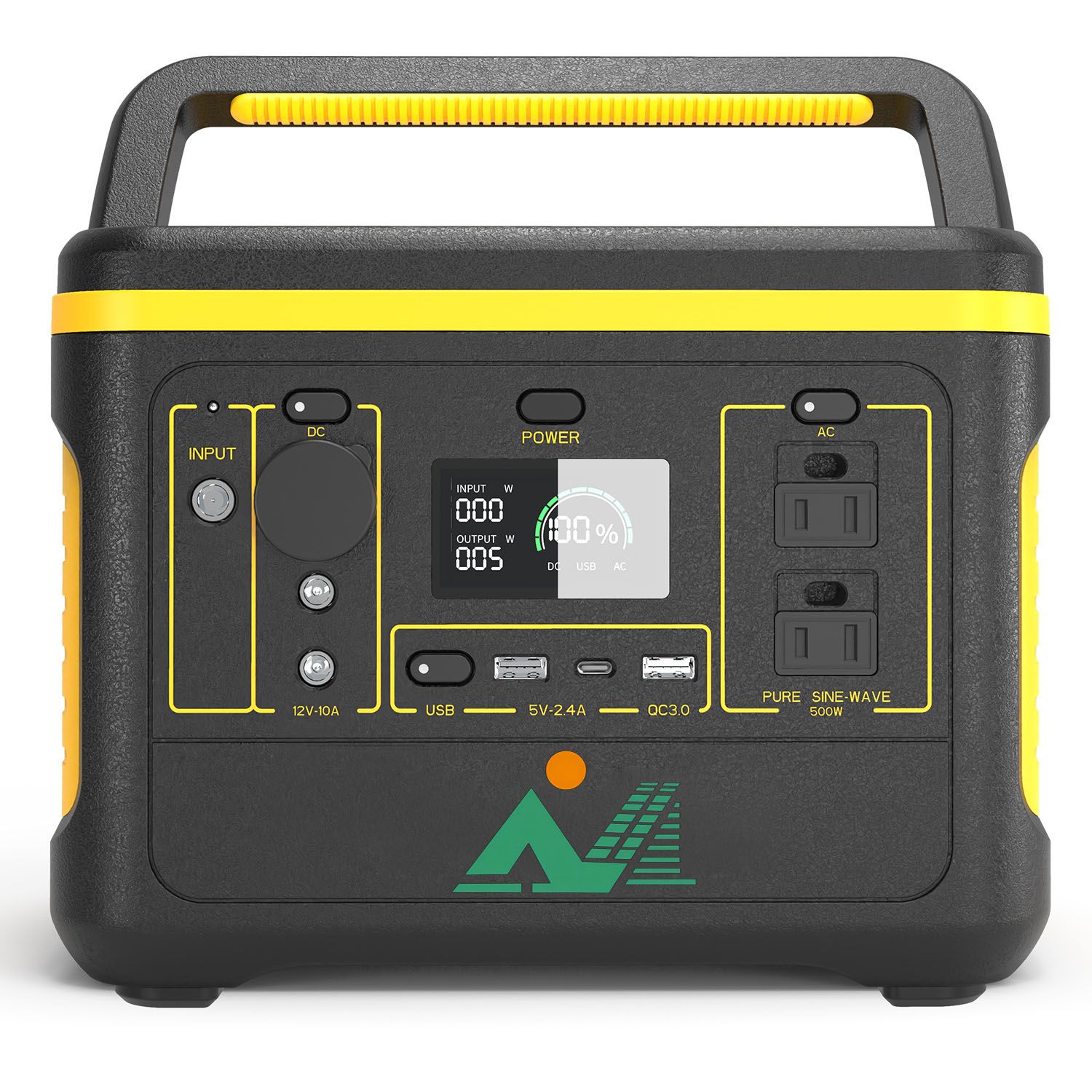

Factory DK-600W 568Wh 12-24V 5-13A Portable outdoor emergency charging station
Product description
This is a multi-functional power supply. It is with high efficient 33140 LiFePO4 battery cells, advanced BMS( battery management system) and excellent AC/DC transfer. It can used both indoor and outdoor, and it is widely used as a backup power for home, office, camping and so on. You can charge it with mains power or solar power, and adapter is not required. The product can be 98% full within 1.6 hours, so fast charge is achieved in real sense.
The product can provide constant 1200w AC output.There are also 5V,12V, 15V, 20V DC outputs and 15w wireless output. It can work with different scenarios. Meanwhile, advanced power management system is configured to ensure long battery life and safety.
Product features
1)Compact, light and Portable
2)Can support mains power and photovoltaic charging modes;
3)AC110V/ 220V output,DC5V,9V,12V,15V,20V output and more.
4)Safe, efficient and high power33140 LiFePO4 lithium battery cell.
5)Various protection, including under voltage, over voltage, over current, over temperature, short circuit, over charge, over release and so on.
6)Use large LCD screen to display power and function indication;
7) Support QC3.0 quick charging and PD65W quick charging
8)0.3s fast start, high efficiency.

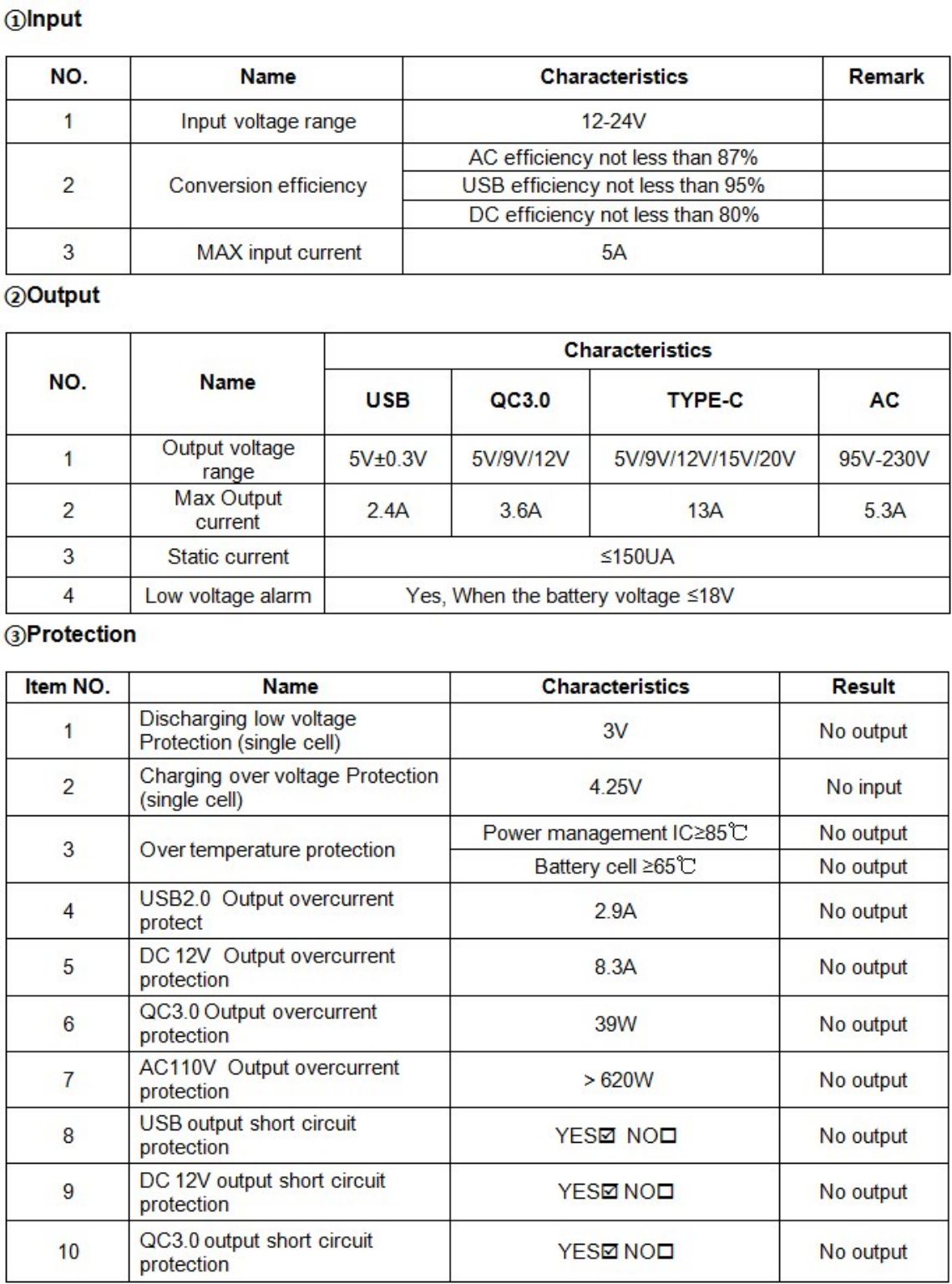

Product parameters
Function Introduction and Operating Description
A.Charging
1)You can connect the mains power to charge the product, adapter is required. Also you can connect the solar panel to charge the product. The LCD display panel will blink incrementally from left to right. When all the 10 steps are green and the battery percentage is 100%, it means that the product is fully charged.
2) During the charging, the charging voltage should be within the input voltage range, otherwise it will cause overvoltage protection or mains trip.
B.AC discharge
1) Click the "POWER" button for 1S, and the screen is On. Click the AC button, and the AC output will show in the screen. At this time, insert any load into the AC output port, and the device can be used normally.
2) Note: Please do not exceed the maximum output power 600w in the machine. If the load exceeds 600W, the machine will go into protection state and there is no output. The buzzer will make alarm and the alarm symbol will appear on the display screen. At this time, some loads need to be removed, and then press any set of buttons, the alarm will disappear. The machine will work again when the power of the loads is within rated power.
C.DC discharge
1) Press the "POWER" button for 1S, and the screen is On. Press the "USB" button to display USB on the screen. Press the "DC" button to display DC on the screen. At this time all DC ports are working. If you don’t want use DC or USB, press the button for 1 second to disable it, you will save energy by it.
2)QC3.0 port: supports fast charging.
3) Type-c port: supports PD65W charging..

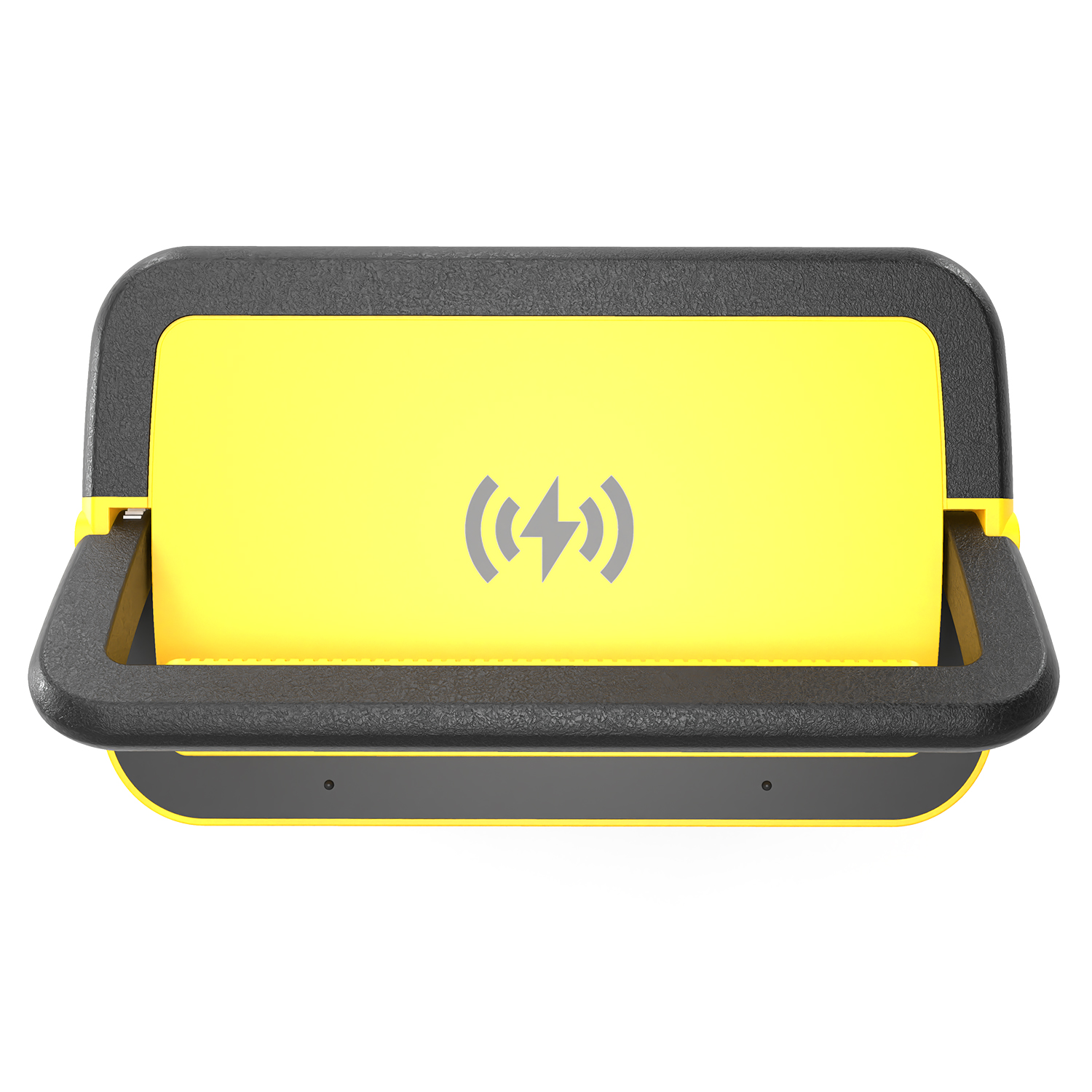

4) Wireless charging port: supports 15W wireless charging
Operating Description:
1)Product standby and shutdown:When all DC/AC/USB outputs are off,the display will go into hibernation mode after 16 seconds, and it will automatically shuts down after 26 seconds. If one of the AC/DC/USB/ output is turned on,the display will work.
2)It support charging and discharging simultaneously :When the adapter is charging the device,the device can also work with AC equipment for discharging. But if the battery voltage is lower than 20V or the charge reaches 100%,this function is not working.
3)Frequency conversion:When the AC is off, press the AC button for 3 seconds and 50Hz/60Hz transfer is made.
4)LED light: press the LED button shortly the first time and the led light will be beaming. Press it shortly the second time, it will go into SOS mode. Press it shortly the third time, it will switch off.

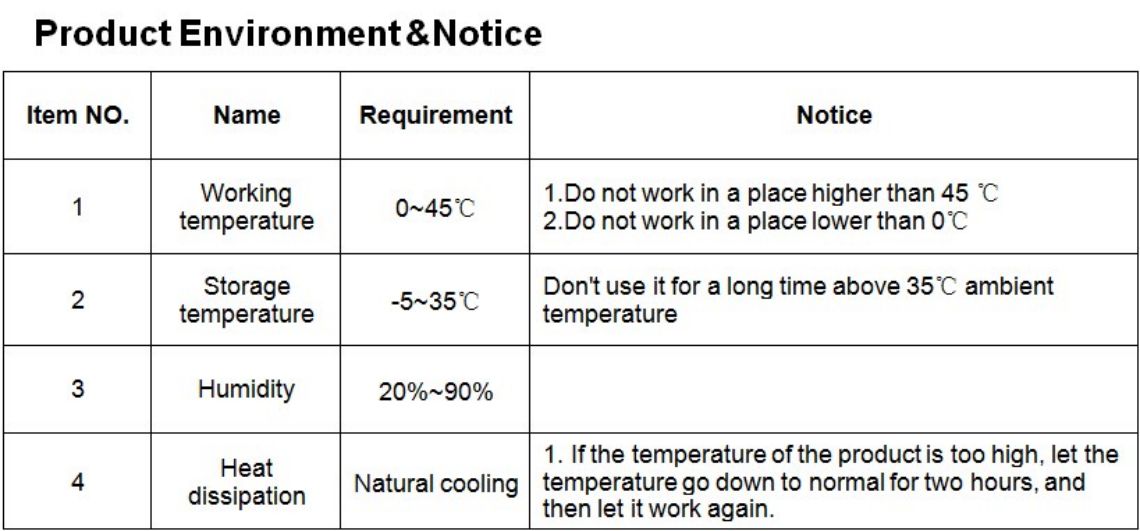

Product precautions
1.Please pay attention to the input and output voltage range when using this product. Make sure the input voltage and the power should be within the range of the energy storage power supply. The life span will be prolonged if you use it properly.
2. The connection cables must be matched, because different load cables correspond to different equipment. Therefore, please use the original connection cable so the performance of the device can be guaranteed.
3. The energy storage power supply needs to be stored in a dry environment. Proper storage method can prolong the service life of the energy storage power supply.
4.If you do not use the product for a long time, please charge and discharge the product once every month to improve the service life of the product
5.. Do not put the device under too High or too low ambient temperature, it will shorten the service life of electronic products and make damage of the product shell.
6. Do not use corrosive chemical solvent to clean the product. Surface stains can be cleaned by cotton swab with some anhydrous alcohol
7. Please handle the product gently while using, do not make it fall down or disassemble it violently
8. There is high voltage in the product, so do not disassemble by yourself, lest it may cause safety accident.
9. It is recommended that the device should be fully charged for the first time to avoid inconvenience caused by low power. After the device is fully charged, the fan will continue to work for 5-10 minutes after the charging power cable is removed for standby heat dissipation (the specific time may vary with the scene temperature)
10. When the fan is working, prevent dust particles or foreign matters from being inhaled into the device. Otherwise, the device may be damaged.
11. After the discharge is terminated, the fan continues to work to lower the temperature of the device to a proper temperature for about 30 minutes (the time may vary with the scene temperature). When the current exceeds 15A or the temperature of the device is too high, the automatic power-off protection is triggered.
12. During the charging and discharging process, connect the device to the charging and discharging device properly before starting the charging and discharging device; otherwise, sparks may occur, which is a normal phenomenon
13. After discharging, please allow the product to stand for 30 minutes before charging to increase the life of the product's battery.
Plug socket selection
Workshop
Certificate
Product application cases
Transportation and packaging
FAQ
Q:What is the name of your company?
A:Minyang new energy(Zhejiang) co.,ltd
Q:Where is your company?
A:Our company is located in Wenzhou, Zhejiang, China, the capital of electrical appliances.
Q:Are you a directly factory or trading company?
A:We are outdoor power supply manufacturer.
Q: How does your factory do regarding quality control?
A: Quality is the priority. We always attach great importance to quality
controlling from the start to the end. All our products have gained CE, FCC, ROHS certification.
Q:What can you do?
A:1.AII of our products have proceeded aging test before shipment and we guarantee safety while using our products.
2. OEM/ODM orders are warmly welcomed!
Q:Warranty and return:
A:1. Products have been tested by 48hours continuous load aging before ship out.wanrranty is 2 years
2. We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
Q:Is sample available and free?
A:Sample is available, but the sample cost should be pay by you. The cost of sample will be refund after further order.
Q:Do you accept customized order?
A:Yes, we do.
Q:What's the delivery time?
A:It usually takes 7-20 days after confirming payment, but specific time should be based on tne order quantity.
Q:What are the payment terms of your company?
A:Our company supports L/C or T/T payments.
